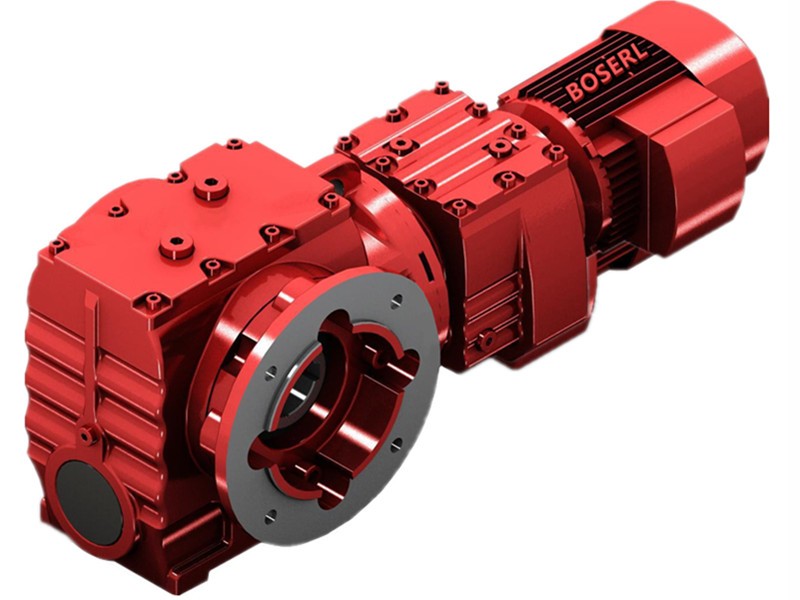

SAF77R37DM71S4詳細信息
SAF77R37DM71S4
關鍵詞：0.18KW用什么齒輪減速機_SAF77R37DM71S4_SAF77R37DT80S4
SAF77R37DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF77R37DM71S4 | 954 | 0.25KW | 1.40r/min | 1250N.m | 68.5kg | 11800N | 1.00 |
| SAF77R37DM71S4 | 837 | 0.25KW | 1.60r/min | 1100N.m | 68.5kg | 13100N | 1.10 |
| SAF77R37DM71S4 | 714 | 0.25KW | 1.80r/min | 920N.m | 68.5kg | 14200N | 1.35 |
| SAF77R37DM71S4 | 637 | 0.25KW | 2.00r/min | 820N.m | 68.5kg | 14800N | 1.50 |
| SAF77R37DM71S4 | 574 | 0.25KW | 2.30r/min | 745N.m | 68.5kg | 15200N | 1.65 |
| SAF77R37DM71S4 | 499 | 0.25KW | 2.60r/min | 635N.m | 68.5kg | 15600N | 1.95 |
SAF77R37DT80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF77R37DT80S4 | 438 | 0.55KW | 3.20r/min | 1200N.m | 73.5kg | 12300N | 1.05 |
| SAF77R37DT80S4 | 389 | 0.55KW | 3.60r/min | 1070N.m | 73.5kg | 13300N | 1.15 |
| SAF77R37DT80S4 | 327 | 0.55KW | 4.20r/min | 900N.m | 73.5kg | 14400N | 1.35 |
| SAF77R37DT80S4 | 289 | 0.55KW | 4.80r/min | 810N.m | 73.5kg | 14800N | 1.50 |
| SAF77R37DT80S4 | 250 | 0.55KW | 5.50r/min | 705N.m | 73.5kg | 15300N | 1.75 |

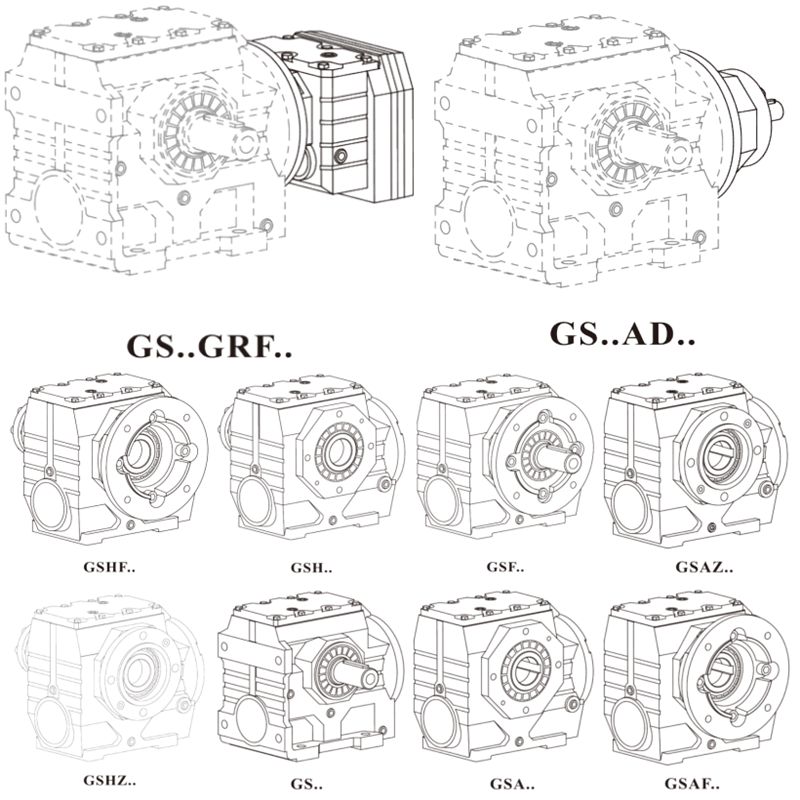

SAF77R37DM71S4電機減速器類型：
S77R37DM71S4底腳安裝-斜齒輪自鎖減速機
SA77R37DM71S4空心軸安裝-斜齒輪蝸輪蝸桿減速機
SAF77R37DM71S4是B5法蘭安裝款式-斜齒輪蝸輪蝸桿減速機
SAZ77R37DM71S4是B14法蘭空心軸安裝-斜齒輪蝸輪蝸桿減速機
SF77R37DM71S4是B5法蘭實心軸安裝-斜齒輪蝸輪蝸桿減速機
SH77R37DM71S4是空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SHF77R37DM71S4是B5法蘭空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SHZ77R37DM71S4是B14法蘭空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SA77/TR37DM71S4扭力臂空心軸安裝-斜齒輪蝸輪蝸桿減速機
SH77/TR37DM71S4是扭力臂空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
SA77BR37DM71S4底腳空心軸安裝-斜齒輪蝸輪蝸桿減速機
SH77BR37DM71S4底腳空心軸鎖緊盤安裝-斜齒輪蝸輪蝸桿減速機
ST77R37DM71S4實心軸輸出扭力臂安裝-斜齒輪蝸輪蝸桿減速機

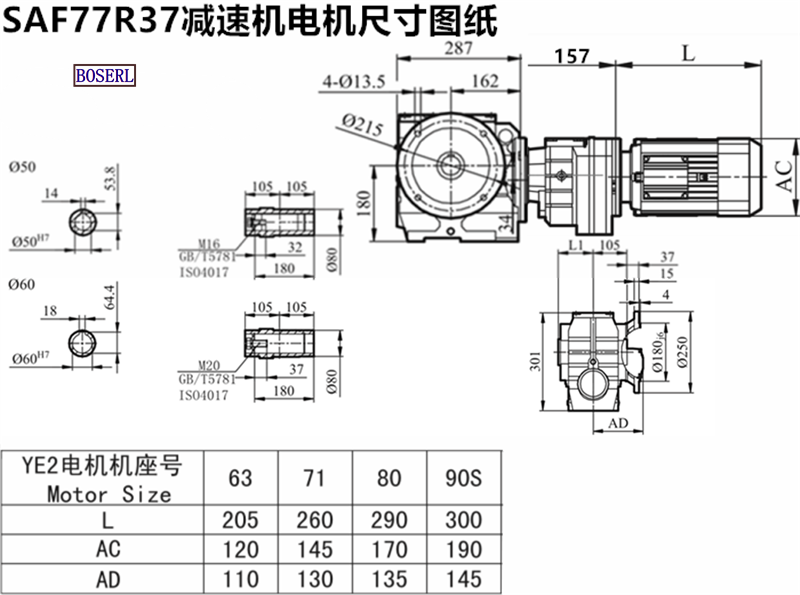

SAF77R37DM71S4電機減速器安裝尺寸圖紙
SAF77R37DM71S4電機減速器生產工廠展示：看廠請?zhí)崆叭祛A約法蘭式減速機
關鍵詞:伺SAF系列減速機_法蘭式減速器與電機_法蘭式減速機_旋轉減速電機_懸掛式減速機_懸掛式電機減速器一套_SAF系列減速機生產廠家
SAF系列減速機型號：SAF37減速機,SAF47減速機,SAF57減速機,SAF67減速機,SAF77減速機,SAF87減速機,SAF97
SAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 0.18KW用什么齒輪減速機 SAF77R37DM71S4 SAF77R37DT80S4
