R87DT112M4詳細信息
R87DT112M4
訂購熱線：13360667204
關鍵詞：傳動比1比155減速機電機_R87DT112M4_R87DRS112M4_傳動比155減速機_155比減速機_155比1減速機_155比減速器
R87DT112M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R87DT112M4 | 93.38 | 3KW | 16rpm | 1830N.m | 98kg | 12000N | 0.85 |
| R87DT112M4 | 81.92 | 3KW | 18rpm | 1610N.m | 98kg | 16500N | 0.95 |
| R87DT112M4 | 72.57 | 3KW | 20rpm | 1420N.m | 98kg | 17700N | 1.1 |
| R87DT112M4 | 63.68 | 3KW | 23rpm | 1250N.m | 98kg | 18700N | 1.25 |
| R87DT112M4 | 60.35 | 3KW | 24rpm | 1180N.m | 98kg | 19000N | 1.3 |
| R87DT112M4 | 52.82 | 3KW | 28rpm | 1030N.m | 98kg | 19700N | 1.5 |
| R87DT112M4 | 47.58 | 3KW | 31rpm | 930N.m | 98kg | 19800N | 1.65 |
| R87DT112M4 | 41.74 | 3KW | 35rpm | 820N.m | 98kg | 19200N | 1.9 |
| R87DT112M4 | 36.84 | 3KW | 40rpm | 725N.m | 98kg | 18500N | 2.1 |
| R87DT112M4 | 32.66 | 3KW | 45rpm | 640N.m | 98kg | 17900N | 2.4 |
| R87DT112M4 | 27.88 | 3KW | 52rpm | 545N.m | 98kg | 17200N | 2.7 |
| R87DT112M4 | 34.4 | 3KW | 42rpm | 675N.m | 98kg | 18200N | 2.2 |
| R87DT112M4 | 31.4 | 3KW | 46rpm | 615N.m | 98kg | 17800N | 2.5 |
| R87DT112M4 | 27.84 | 3KW | 52rpm | 545N.m | 98kg | 17200N | 2.8 |
| R87DT112M4 | 23.4 | 3KW | 62rpm | 460N.m | 98kg | 16300N | 3.4 |
| R87DT112M4 | 21.51 | 3KW | 68rpm | 420N.m | 98kg | 15900N | 3.5 |
| R87DT112M4 | 19.1 | 3KW | 76rpm | 375N.m | 98kg | 15400N | 3.8 |
| R87DT112M4 | 17.08 | 3KW | 85rpm | 335N.m | 98kg | 14900N | 4.1 |
| R87DT112M4 | 15.35 | 3KW | 95rpm | 300N.m | 98kg | 14400N | 4.4 |
R87DRS112M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R87DRS112M4 | 63.68 | 4KW | 23rpm | 1660N.m | 109kg | 13600N | 0.95 |
| R87DRS112M4 | 60.35 | 4KW | 24rpm | 1570N.m | 109kg | 14200N | 1 |
| R87DRS112M4 | 52.82 | 4KW | 28rpm | 1380N.m | 109kg | 15500N | 1.1 |
| R87DRS112M4 | 47.58 | 4KW | 31rpm | 1240N.m | 109kg | 16200N | 1.25 |
| R87DRS112M4 | 41.74 | 4KW | 35rpm | 1090N.m | 109kg | 17000N | 1.4 |
| R87DRS112M4 | 36.84 | 4KW | 40rpm | 960N.m | 109kg | 17500N | 1.6 |
| R87DRS112M4 | 32.66 | 4KW | 45rpm | 850N.m | 109kg | 17400N | 1.8 |
| R87DRS112M4 | 27.88 | 4KW | 52rpm | 725N.m | 109kg | 16700N | 2.1 |
| R87DRS112M4 | 34.4 | 4KW | 42rpm | 900N.m | 109kg | 17600N | 1.65 |
| R87DRS112M4 | 31.4 | 4KW | 46rpm | 820N.m | 109kg | 17200N | 1.9 |
| R87DRS112M4 | 27.84 | 4KW | 52rpm | 725N.m | 109kg | 16700N | 2.1 |
| R87DRS112M4 | 23.4 | 4KW | 62rpm | 610N.m | 109kg | 16000N | 2.5 |
| R87DRS112M4 | 21.51 | 4KW | 68rpm | 560N.m | 109kg | 15600N | 2.7 |
| R87DRS112M4 | 19.1 | 4KW | 76rpm | 495N.m | 109kg | 15100N | 2.9 |
| R87DRS112M4 | 17.08 | 4KW | 85rpm | 445N.m | 109kg | 14600N | 3.1 |
| R87DRS112M4 | 15.35 | 4KW | 95rpm | 400N.m | 109kg | 14200N | 3.3 |
| R87DRS112M4 | 13.33 | 4KW | 110rpm | 345N.m | 109kg | 13600N | 3.7 |
| R87DRS112M4 | 11.93 | 4KW | 122rpm | 310N.m | 109kg | 13200N | 3.9 |

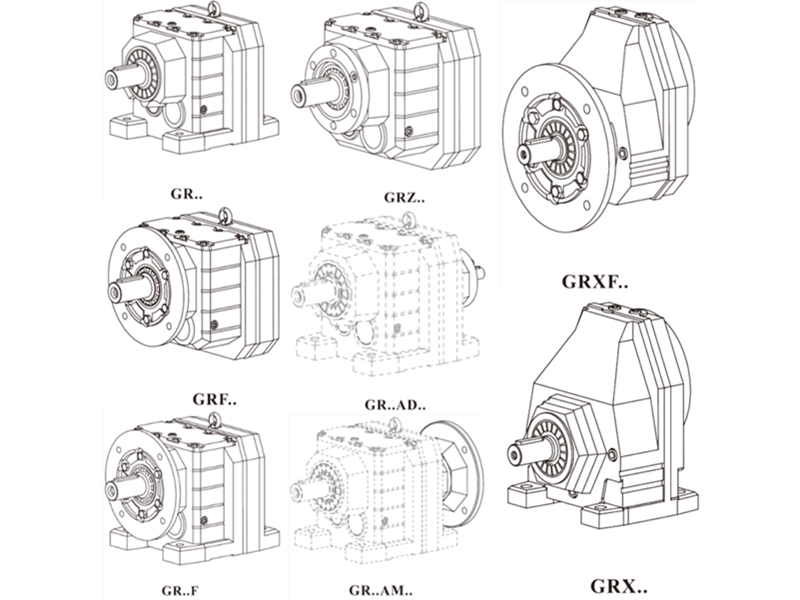

RR87DT112M4電動機減速機類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機
R87DT112M4電動機減速機安裝尺寸圖紙
R87DT112M4電動機減速機生產工廠展示：看廠請?zhí)崆叭祛A約
R系列減速機應用案例展示：
關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 傳動比1比155減速機電機 R87DT112M4 R87DRS112M4 傳動比155減速機 155比減速機 155比1減速機 155比減速器
