FA107R77DV71S4詳細信息
FA107R77DV71S4
關鍵詞：55KW適配平行軸斜齒輪減速箱_FA107R77DV71S4_FA107R77DRN63MS4
FA107R77DV71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA107R77DV71S4 | 5954 | 0.25KW | 0.22r/min | 9050N.m | 448kg | 46000N | 0.85 |
| FA107R77DV71S4 | 5223 | 0.25KW | 0.25r/min | 7890N.m | 448kg | 49300N | 0.95 |
| FA107R77DV71S4 | 4567 | 0.25KW | 0.28r/min | 7120N.m | 448kg | 51300N | 1.10 |
| FA107R77DV71S4 | 3521 | 0.25KW | 0.37r/min | 5430N.m | 448kg | 55300N | 1.40 |
| FA107R77DV71S4 | 3037 | 0.25KW | 0.43r/min | 4780N.m | 448kg | 56800N | 1.60 |
| FA107R77DV71S4 | 2756 | 0.25KW | 0.47r/min | 4340N.m | 448kg | 57700N | 1.75 |
| FA107R77DV71S4 | 2369 | 0.25KW | 0.55r/min | 3730N.m | 448kg | 59000N | 2.10 |
| FA107R77DV71S4 | 2068 | 0.25KW | 0.63r/min | 3250N.m | 448kg | 59900N | 2.40 |
| FA107R77DV71S4 | 1597 | 0.25KW | 0.81r/min | 2490N.m | 448kg | 61300N | 3.10 |
| FA107R77DV71S4 | 1401 | 0.25KW | 0.93r/min | 2150N.m | 448kg | 61900N | 3.60 |
FA107R77DRN63MS4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA107R77DRN63MS4 | 14767 | 0.12KW | 0.10r/min | 8850N.m | 443.5kg | 65000N | 0.90 |
| FA107R77DRN63MS4 | 11348 | 0.12KW | 0.11r/min | 7550N.m | 443.5kg | 65000N | 1.05 |
| FA107R77DRN63MS4 | 10039 | 0.12KW | 0.13r/min | 6600N.m | 443.5kg | 65000N | 1.20 |
| FA107R77DRN63MS4 | 8548 | 0.12KW | 0.14r/min | 5890N.m | 443.5kg | 65000N | 1.35 |
| FA107R77DRN63MS4 | 7674 | 0.12KW | 0.17r/min | 5150N.m | 443.5kg | 65000N | 1.55 |
| FA107R77DRN63MS4 | 6767 | 0.12KW | 0.19r/min | 4490N.m | 443.5kg | 65000N | 1.80 |
| FA107R77DRN63MS4 | 5954 | 0.12KW | 0.22r/min | 3700N.m | 443.5kg | 65000N | 2.20 |
| FA107R77DRN63MS4 | 5223 | 0.12KW | 0.24r/min | 3210N.m | 443.5kg | 65000N | 2.50 |
| FA107R77DRN63MS4 | 4567 | 0.12KW | 0.27r/min | 2910N.m | 443.5kg | 65000N | 2.70 |
| FA107R77DRN63MS4 | 3521 | 0.12KW | 0.32r/min | 2670N.m | 443.5kg | 65000N | 3.00 |
FA107R77DV71S4減速機電動機類型：
F107R77DV71S4底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA107BR77DV71S4底腳空心軸安裝平行軸—斜齒輪減速機
FV107BR77DV71S4底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA107R77DV71S4空心軸安裝平行軸—斜齒輪減速機
FV107R77DV71S4花鍵空心軸安裝平行軸—斜齒輪減速機
FAF107R77DV71S4是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF107R77DV71S4是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ107R77DV71S4是B14法蘭安裝平行軸—斜齒輪減速機
FVZ107R77DV71S4是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF107R77DV71S4是B5法蘭安裝平行軸—斜齒輪減速機
FH107BR77DV71S4底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH107R77DV71S4是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF107R77DV71S4是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ107R77DV71S4是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

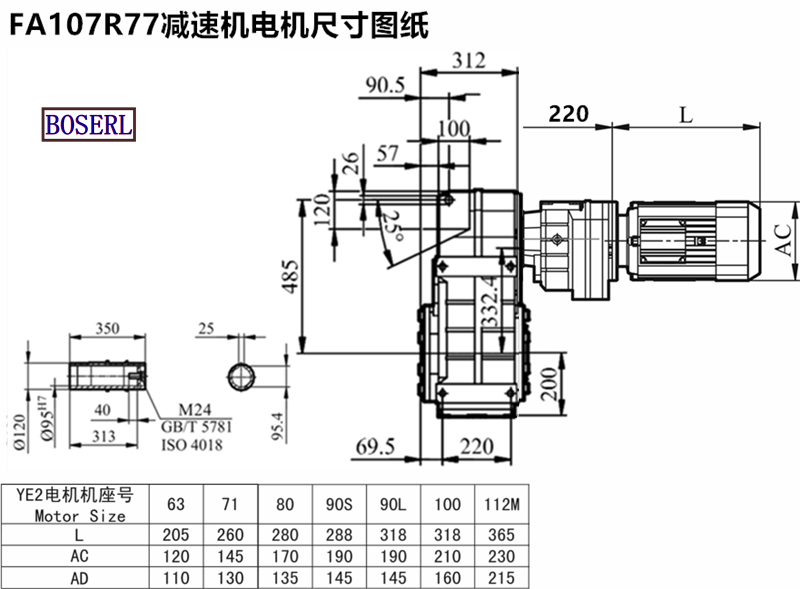

FA107R77DV71S4減速機電動機安裝尺寸圖紙
FA107R77DV71S4減速機電動機生產廠家，看廠請?zhí)崆叭祛A(yù)約三相變頻電機減速機
關鍵詞:FA系列減速機與電機_變頻減速機_三相變頻電機減速器一套_變頻減速電機_變頻剎車電動機齒輪箱_三相變頻電機減速機_變頻減速電機生產廠家
FA系列減速機型號：FA27減速機,FA37減速機,FA47減速機,FA67減速機,FA77減速機,FA87減速機,FA97減速機,FA107減速機,FA127減速機,FA157減速機
FA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 55KW適配平行軸斜齒輪減速箱 FA107R77DV71S4 FA107R77DRN63MS4
